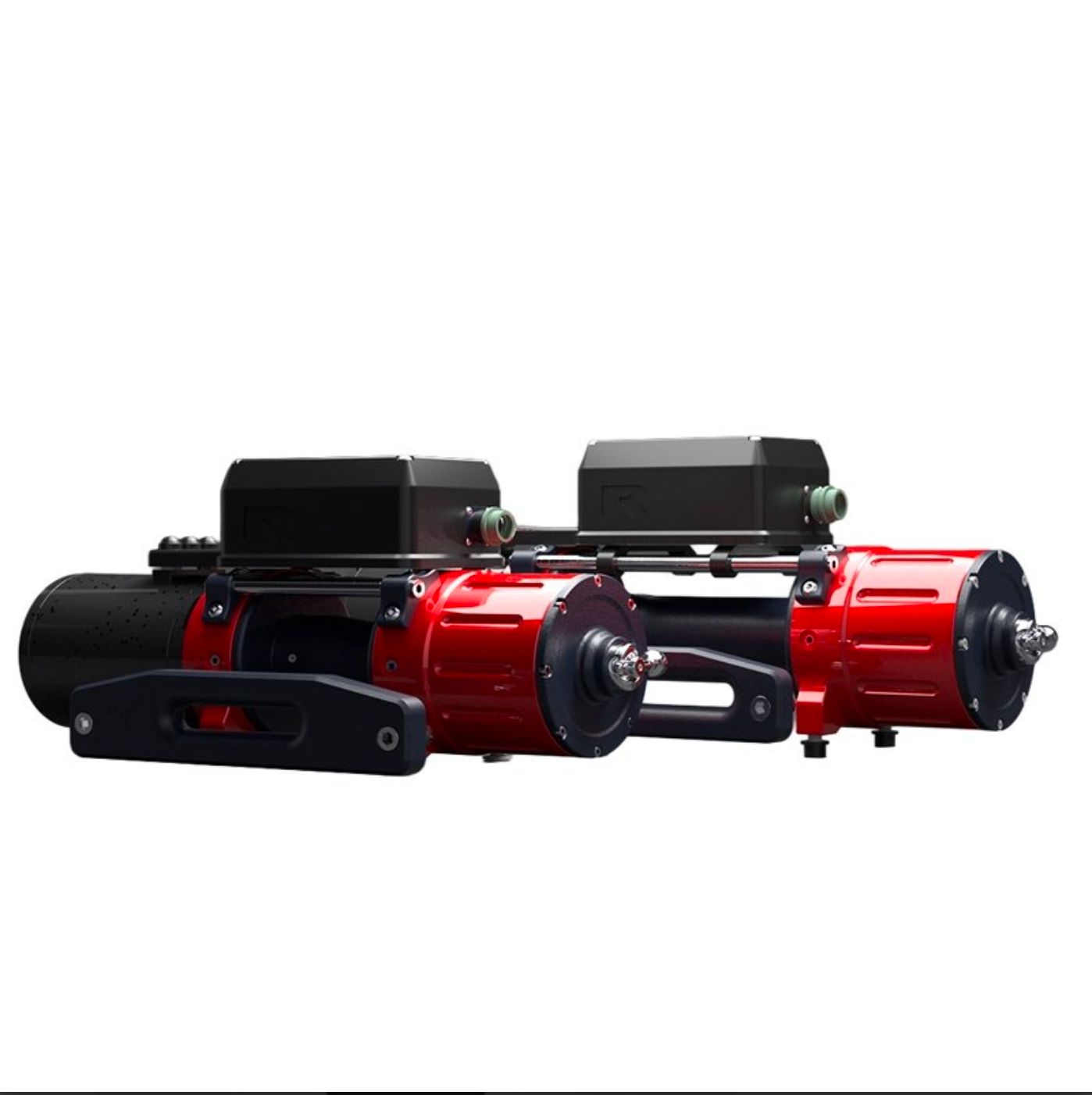

TIGER

Class-Leading Performance: Delivers top-tier line speeds paired with the lowest current draw under load in its class (see Performance Data tab for detailed metrics).

Advanced Control Electronics: Winch-mounted CNC-machined control box featuring an Albright heavy-duty solenoid, low-resistance copper busbar system, and integrated RED Winches wireless remote.

Versatile Controller Options: Includes an integrated 4-pin, military-spec socket for optional wired hand-controller operation.

Flexible Mounting: The control box can be remote-mounted away from the winch to suit bespoke vehicle packaging.

Billet Aluminium Housings: Precision CNC-machined from solid aircraft-grade billet aluminium for maximum structural integrity and weight saving.

Cerakote Ceramic Finish: Coated in ultra-durable Cerakote thin-film ceramic for superior abrasion and corrosion resistance.

Billet Hawse Fairlead: Supplied with a matching precision CNC-machined billet aluminium hawse fairlead.

Synthetic Rope & Hook: Pre-fitted with RED Winches synthetic rope and heavy-duty hook (see Rope & Hook tab for specifications).

Ultra-Durable Gearbox: Case-hardened chromium-molybdenum steel gears (rated up to 1,230 N/mm²) engineered for extreme torque and longevity.

Field-Serviceable Lubrication: Utilises semi-liquid grease rather than oil, enabling hassle-free maintenance at home or in the field.

TIGER Winch – Available with 2 Gearing Options – Please see gallery images for related performance charts.

The TIGER Winch offers two gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds:

UTV

Pulling Capacity: 2,836 kg (6,250 lbs)

No Load Line Speed: 23.7 m/min (77.8 ft/min)

Drum RPM – 88

U4

Pulling Capacity: 4,308 kg (9,500 lbs)

No Load Line Speed: 17.5 m/min (57.3 ft/min)

Drum RPM – 64

Weight Information
