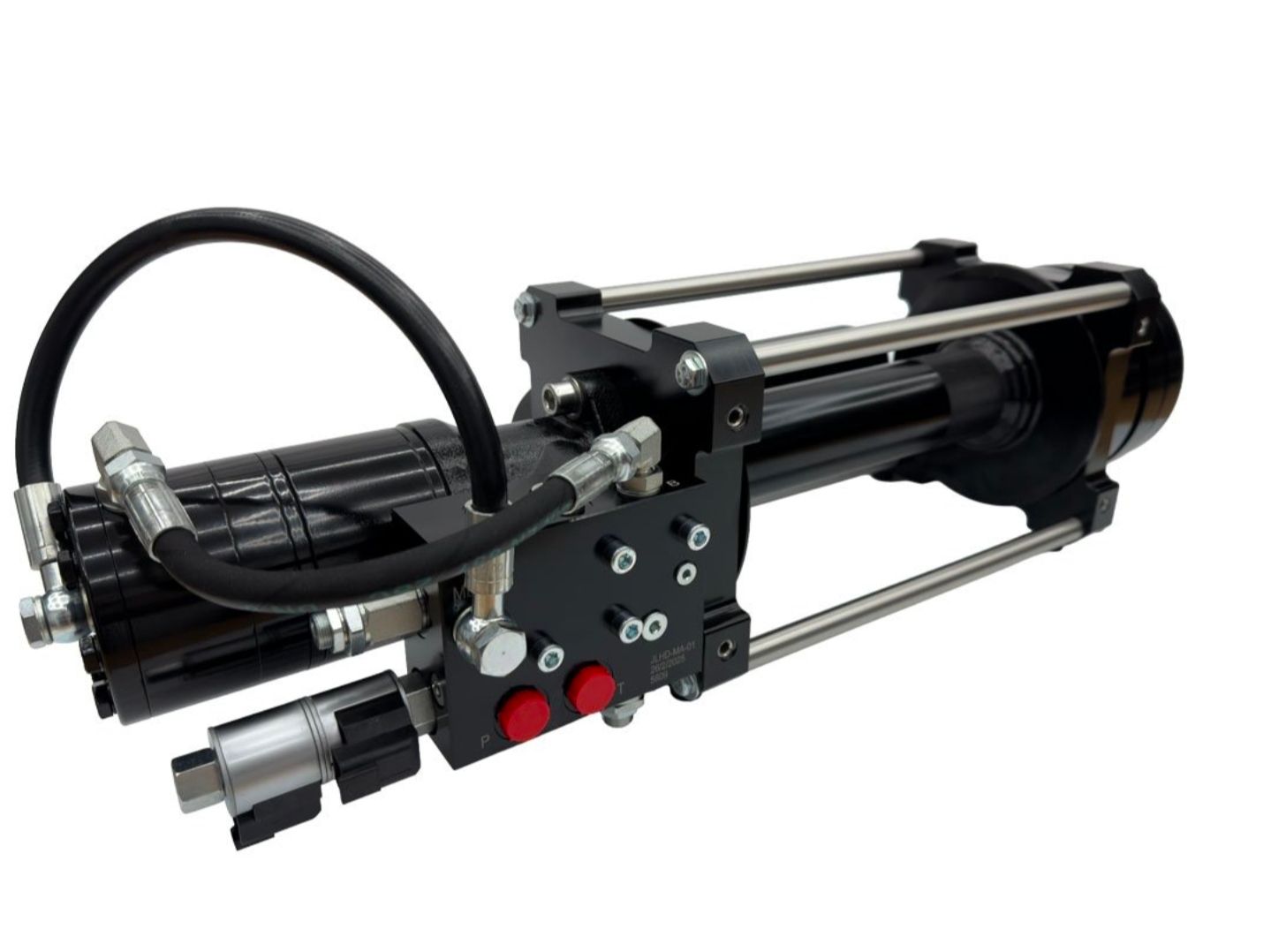

Puma Hydraulic Winch

Description

Designed to meet a compact footprint, this winch is built for heavy-duty, Military, Industrial and Commercial applications where failure is not an option.

With an impressive Drum capacity and a rope size of your choice, along with a twin speed setup, the winch maximises available space and ensures smooth, powerful pulling performance every time.

Safety is at the core of our design, featuring no catastrophic failure of the winch itself at a 2:1 Safety Factor, giving you all the security you need under extreme conditions.

The Hydraulic Full Load Holding Brake delivers precise handling and stability, keeping your operations safe and steady no matter the challenge. The motor-mounted control valve also has an integrated OCV, adding a 2nd brake system to the winch.

Due to its 7,500kg rating, it’s enough to handle your heaviest, most demanding recoveries. But it can also be tuned down on capacity thanks to its built-in pressure relief valve. Adjusting this feature can give you higher safety factors if needed, and also protect vehicle structures if they are not rated at 7,500kg.

This complete winch package has inclusive features enabling it to be used straight out of the box with only a pressure supply and return hydraulic hoses to be fitted.

Twin Speed with twin rating

Fully integrated control system mounted to the winch

High precision single-stage planetary gearing for each speed

Industry-leading rugged high-torque motor

Line Capacity: 7,500kg

Rope: Synthetic 12mm Dia x 30m as standard

Motor: Hydraulic 315cc

Motor Brake

Integral Pressure relief Valve

Integral OCV Valve

Gearbox: 6:1 & 2.25:1

Mounting Bolts: M12, Grade 10.9, Included for Standard installations

Warranty: Limited Five-Year Mechanical
