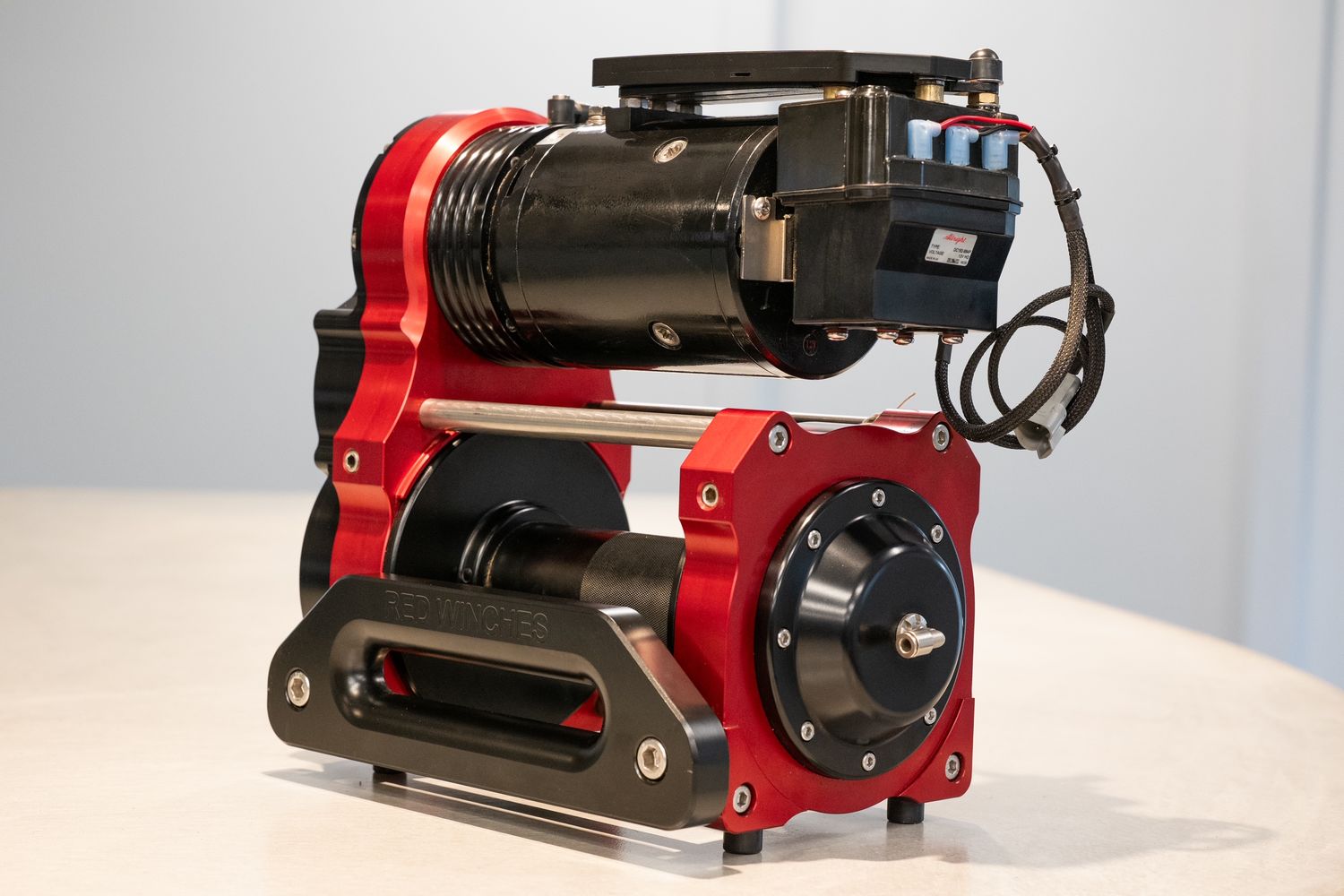

King Cobra

Red Winches King Cobra: Single Motor

• ELECTRICAL CONTROL TYPE: Albright DC182 series - IP 67
• MOTOR TYPE: Series Wound Ox motor
• MOTOR HORSEPOWER: 7 Horsepower
• DRUM OVERRUN: 3" to 6"
• FREE SPOOLING: Air - full drum disconnet
• BRAKE TYPE: Air opererated Disc Brake
• FAILSAFE ON BRAKE: Yes
• MOUNTING PATTERN: Std drum - 254 x 114.5mm
  +76 drum - 330.5 x 114.5mm
  XL drum - 457 x 114.5mm
• OVERALL DIMENSIONS - W, H, D, - excluding fairlead: Std drum - 369.8 x 336 x 175mm
  +76 drum - 465.3 x 336 x 175mm
  XL drum - 572.5 x 336 x 175mm
• LINE LENGTH : Std drum - 30m of 11mm synthetic rope
  +76 drum - 48m of 11mm synthetic rope
  XL drum 55m of 11mm synthetic rope
• FAIRLEAD TYPE: Machined from billet ALUMINIUM ALLOY: 6082 T6
• CONFORMS TO J706 STANDARDS: Yes
• MOUNTING OPTION: Feet down or feet forward
• HOUSING CONSTRUCTION: Machined from billet ALUMINIUM ALLOY: 6082 T6
• FINISH: Choice of Anodising or Cerakote
• COLOR: Red and Black as standard - custom colours available
• DRUM CONSTRUCTION: Solid Billet Steel, CNC Machined, 3 piece threaded, screwed and pinned design
• DRUM BEARINGS & SEALS: The drum is sealed with high-quality seals at both ends, making the winch fully watertight and capable of operating underwater. Behind these seals, the drum bearings are equipped with free-running ball bearings that are packed with waterproof grease
• LUBRICATION: Grease
