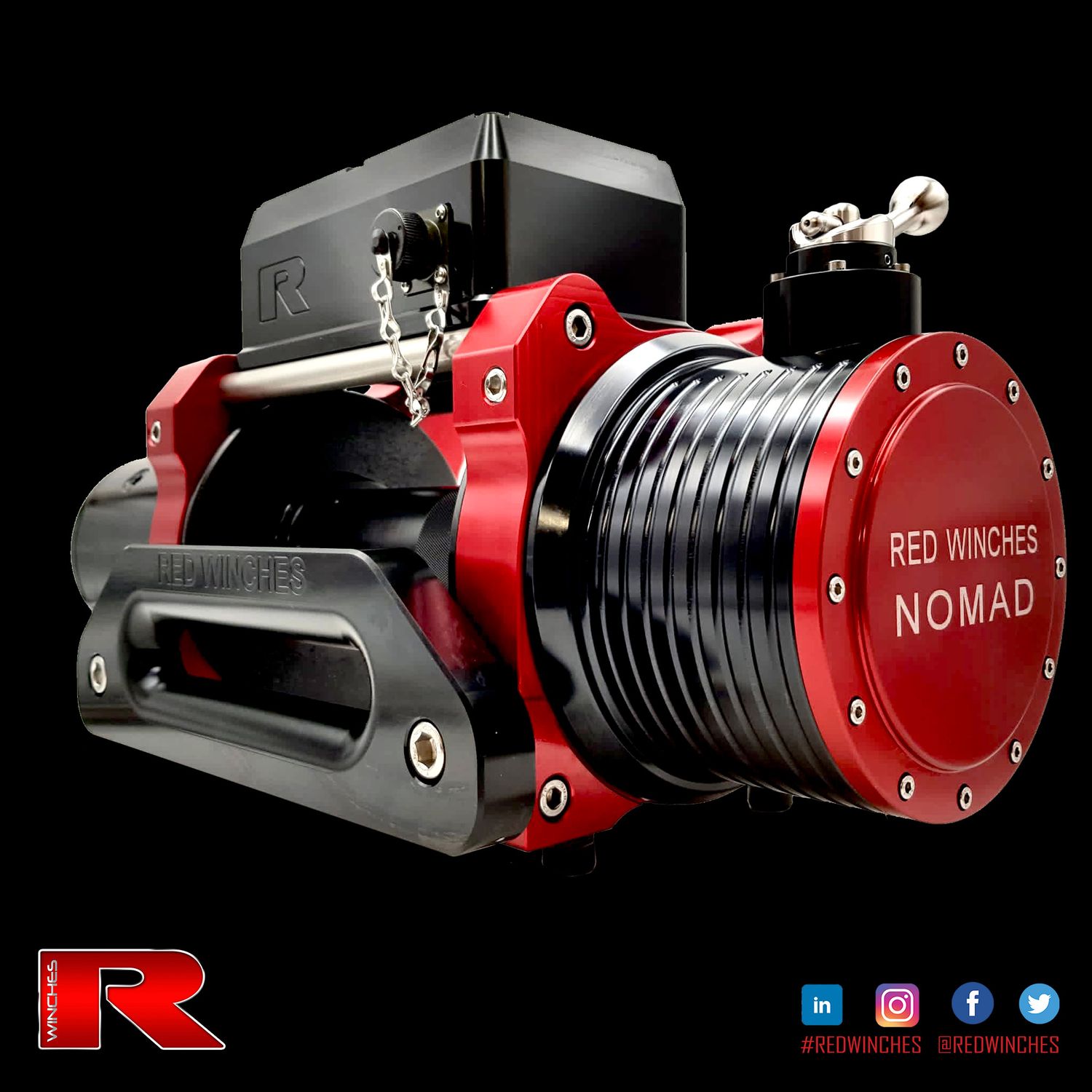

RED WINCH NOMAD

The NOMAD is the ultimate stand alone choice when it comes to the best low line mechanical-electric winch with class leading line speeds, pulling capacities and rope capacity.
RED Winches have designed and developed this winch for serious use and it is just as happy on a road-going vehicle as it is on a fully equipped and prepared 4×4 / recovery truck.

All products at RED Winches have been through an extensive design and testing program before going on sale (engineered to meet J706 standards) and are supplied with relevant CE markings. We do all this so you can use all our winches with confidence, knowing they will not let you down when you most need them.

GEARBOX & SPEEDS

The NOMAD is available with 3 gearing options.

OVERLAND – 8,800 lbs
Average line speed over 100ft: 50.2ft/Min

ADVENTURE – 12,000 lbs
Average line speed over 100ft: 37.7ft/Min

TITAN – 16,500 lbs
Average line speed over 100ft: 24.3ft/Min

The gearbox has been specifically designed for strength, power and ease of service.
The gears are manufactured from chromium molybdenum steel and case hardened to give maximum strength (Up to 1230 N/mm2) and excellent durability.
The gearbox runs in semi liquid grease not oil making it much easier to service, either in the workshop or while out in the bush on your over-landing trip.

POWER & STRENGTH

To handle the power this winch can deliver for you, in all its options, the winch body is fully CNC machined from high-grade heat-treated aluminum solid billets.
No castings or injection mouldings are used. Protecting your investment in this winch from cracked housings, porosity issues or mounting failures.
We only use the best CNC machine tools and machining processes in our modern machine shop and manufacturing facilities, here int he UK. This is to ensure tolerances and stress in the parts is kept to a minimum and strength to its maximum.
The winch is controlled from a CNC machined black control box containing the Albright motor control solenoid and wireless receiver, that is supplied mounted on the winch but can be remotely mounted if you so wish. Remote mounting gives the winch a low profile appearance which is ideal for some winch bumpers or discrete mount options.

DRUM

The drum is steel in construction, precision machined to run true and smoothly within its drum bearings. The drum runs between two drum seals (one each end), making the winch watertight and allowing the end-user to operate the winch underwater. The drum bearings are behind the drum seals and are free-running ball bearings, and filled with waterproof grease as an added second barrier from water ingress.

NOMAD BRAKE SYSTEM

The NOMAD is fitted with a internal drum modern bi directional friction brake, running between a set of bearings for precise concentricity, reducing heat and increasing braking forces. Unlike some of our other winches, the NOMAD winch does not need any separate air supply to operate.

NOMAD : What comes in the Box

• Winch mounted CNC Machined mounted control box
• 25micron, anodised finish Billet Housings
• Ox Motor – The ultimate power behind your winching
• RED Winches basic wireless winch control system fitted
• Albright heavy-duty motor control solenoid
• Efficient, low resistance copper bus bar system
• Aluminum Hawse Fairlead
• Rope with hook – OVERLAND and ADVENTURE are supplied with 11mm x 30m rope

SPECS

• Average line speed over 100ft: 50.2ft/Min
• The drum can hold 118ft of 3/8in plasma or synthetic rope, 98ft of 7/16in plasma or synthetic rope or 82ft of 1/2in plasma or synthetic rope.
• Gross Weight: 90 lbs
• MOUNTING PATTERN: 10in X 4.5 (M12 BOLTS)
