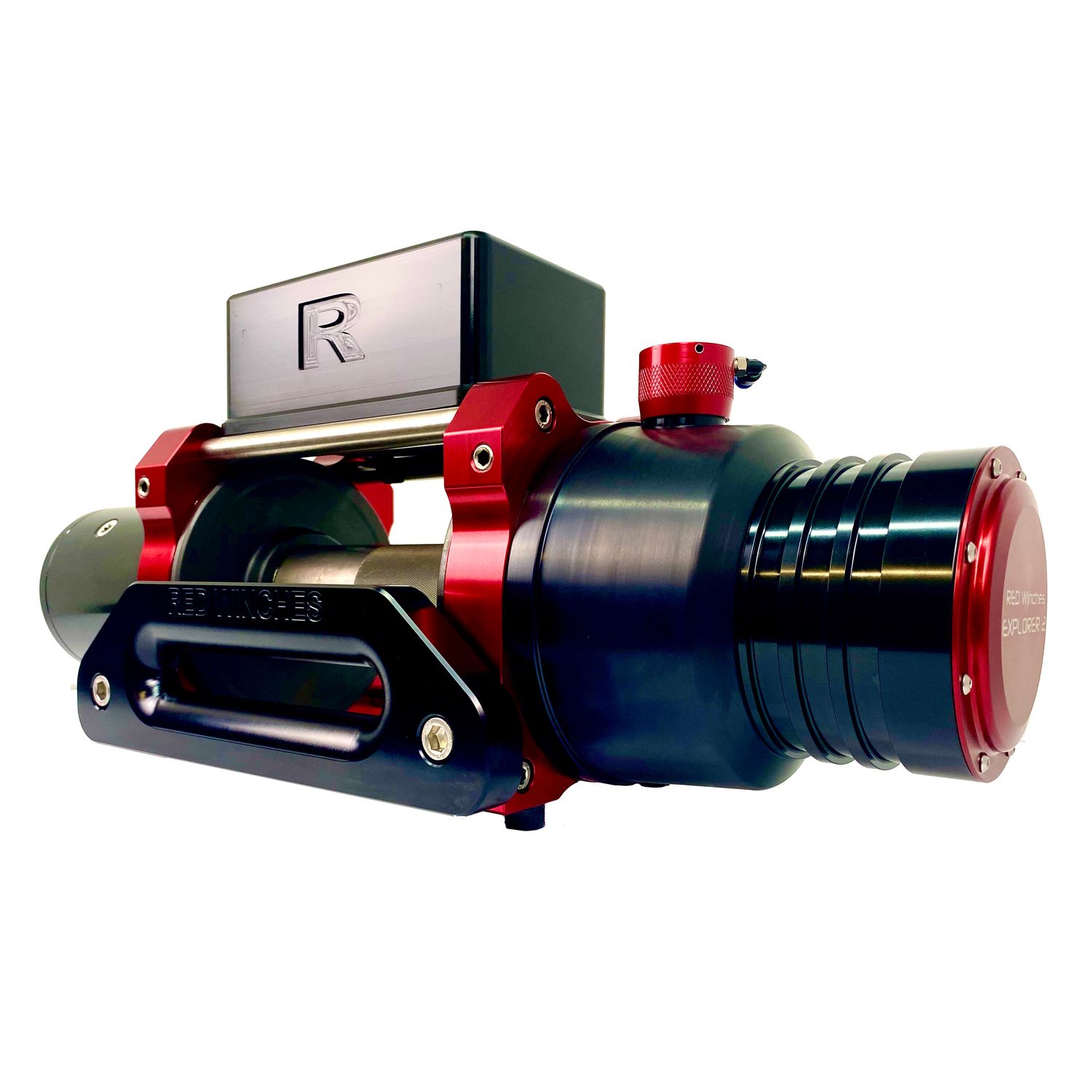

Explorer 3
$3,800.00
New Release!
Includes Rope, wireless controller & power cables!
Drum Size
Gear Set (Capacity)
Voltage
Controller
Please choose
Winch Isolation Contactor with switch
Winch line termination splice
Color
Cerakote (Ceramic coating for optimal protection)
In stock
Product Details
The Explorer 3 Winch offers two gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds:
ADVENTURE
Pulling Capacity: 12,000 lbs
Average Line Speed: 19.6 ft/min
Amp draw at 12000 lbs = 362 amps (12v)
TITAN
Pulling Capacity: 16,500 lbs
Average Line Speed: 11.9 ft/min
Amp draw at 16,500 = 368 amps (12v)
Durable and Easy to Service Gearbox
The gearbox is engineered for maximum strength, power, and ease of maintenance. Manufactured from chromium molybdenum steel and case-hardened for superior strength (up to 1230 N/mm²), it ensures exceptional durability. The gearbox uses semi-liquid grease rather than oil, making it easier to service, whether in the workshop or during an overlanding adventu
Key Features
Body: Solid Billet, CNC Machined
Two Gearing Options
Two Drum Length Options
Motor: Ox Motor, 7.5hp available in 12v OR 24v
Freespool: Air Freespool as standard
Rope: Supplied as standard
Drum Design: Solid Billet Steel, CNC Machined
Weight With Rope: Standard drum 39.5kg (87lbs) XL drum 43.5kg (96lbs)
Waterproof Rating: IP67
Whats in the box
Explorer3
Rope & Hook
Plasma Lock
Air Solenoid & Air Freespool Switch
Wireless Hand Controller
Positive & Negative Cable
Mounting Bolts
3m of 6mm airline
