Explorer 2
$3,549.99
Home / RED Winches / RED Winches Lowline Winch / Explorer2 red winches Explorer2 The Explorer2 is an excellent choice when it comes to the best electric winch for your on-road, Expedition, weekend trip or full spec off-road vehicle. RED Winches has desi
GEARS
In stock
Product Details

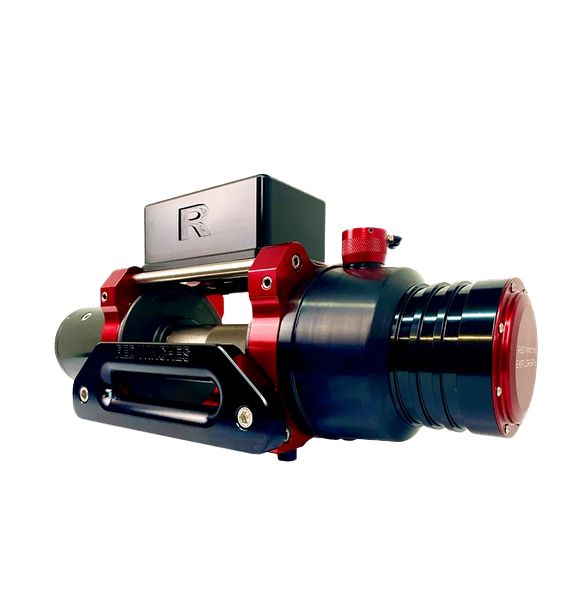

RED WINCH EXPLORER2
The Explorer2 is an excellent choice when it comes to the best electric winch for your on-road, Expedition, weekend trip or full spec off-road vehicle.
RED Winches has designed and developed this winch for serious use and it is just as happy on a road-going vehicle as it is on a fully equipped and prepared 4×4 / recovery truck.
All products at RED winches have been through an extensive design and testing program. With many of them having military testing behind them also. We do all this before going on sale so you can use all our winches with confidence, knowing they will not let you down.
This Explorer 2 has the famous RED Winch air brake system, meaning the winch stops instantly when you take your finger off the winch button.
The winch is controlled from a CNC machined black control box, that can be mounted on the winch or remotely in your engine bay or under your seat if you so wish. Remote mounting gives the winch a low profile appearance which is ideal for some winch bumpers or discrete mount options.
SHIPPING WEIGHTS
Explorer 2 – Adventure & Titan Gearbox Options
Std Drum length
Winch Nett Weight: 37kg, Gross Weight: 43kg
XL Drum Length
Nett Weight: 38kg, Gross Weight: 44kg
GEARBOX SPEEDS
Explorer 2 – ADVENTURE
Rated Pull: 6000kg (13,200 lbs)
Final gearbox Ratio: 285:1
Average line speed over 30m (100ft): 9.1 M/Min
Explorer 2 – TITAN
Rated Pull: 7500kg (16,500 lbs)
Final gearbox Ratio: 352:1
Average line speed over 30m (100ft): 7.4 M/min
KEY FEATURES
BODY: SOLID BILLET, CNC MACHINED
TWO GEARING OPTIONS
AIR BRAKE
MOTOR: OX MOTOR, 7.5hp AVAILABLE IN 12v OR 24v
FREESPOOL: AIR OPERATED
DRUM DESIGN: SOLID BILLET STEEL, CNC MACHINED
WATERPROOF RATING: IP67
THE DRUM
The drum is steel in construction, precision machined to run true and smoothly within its drum bearings. The drum runs between two drum seals (one each end), making the winch watertight and allowing the end-user to operate the winch underwater. The drum bearings are behind the drum seals and are free-running ball bearings, and filled with waterproof grease as an added second barrier from water ingress.
The drum can accept the following lengths and sizes of rope:
Explorer 2 STANDARD DRUM:
The Std drum can hold 30m of 11mm plasma or synthetic rope.
The Std drum can hold 25m of 12mm plasma or synthetic rope.
WHATS IN THE BOX
Winch mounted or remotely mounted control box
Anodised finish.
RED Winch air brake system
Ox motor – The ultimate winch motor
Air solenoid for automatic brake operation
Albright heavy-duty motor control solenoid
Efficient, low resistance copper bus bar system
Aluminium fairlead – Much better for your synthetic rope
OUR PROMISE
We are confident to stand behind our products.
All RED Winches are backed with a 2-year mechanical warranty. This covers all mechanical parts.
Wearing parts, bearings, brake pads, etc are excluded, as are electrical components, motors and solenoid packs
Explorer 2
