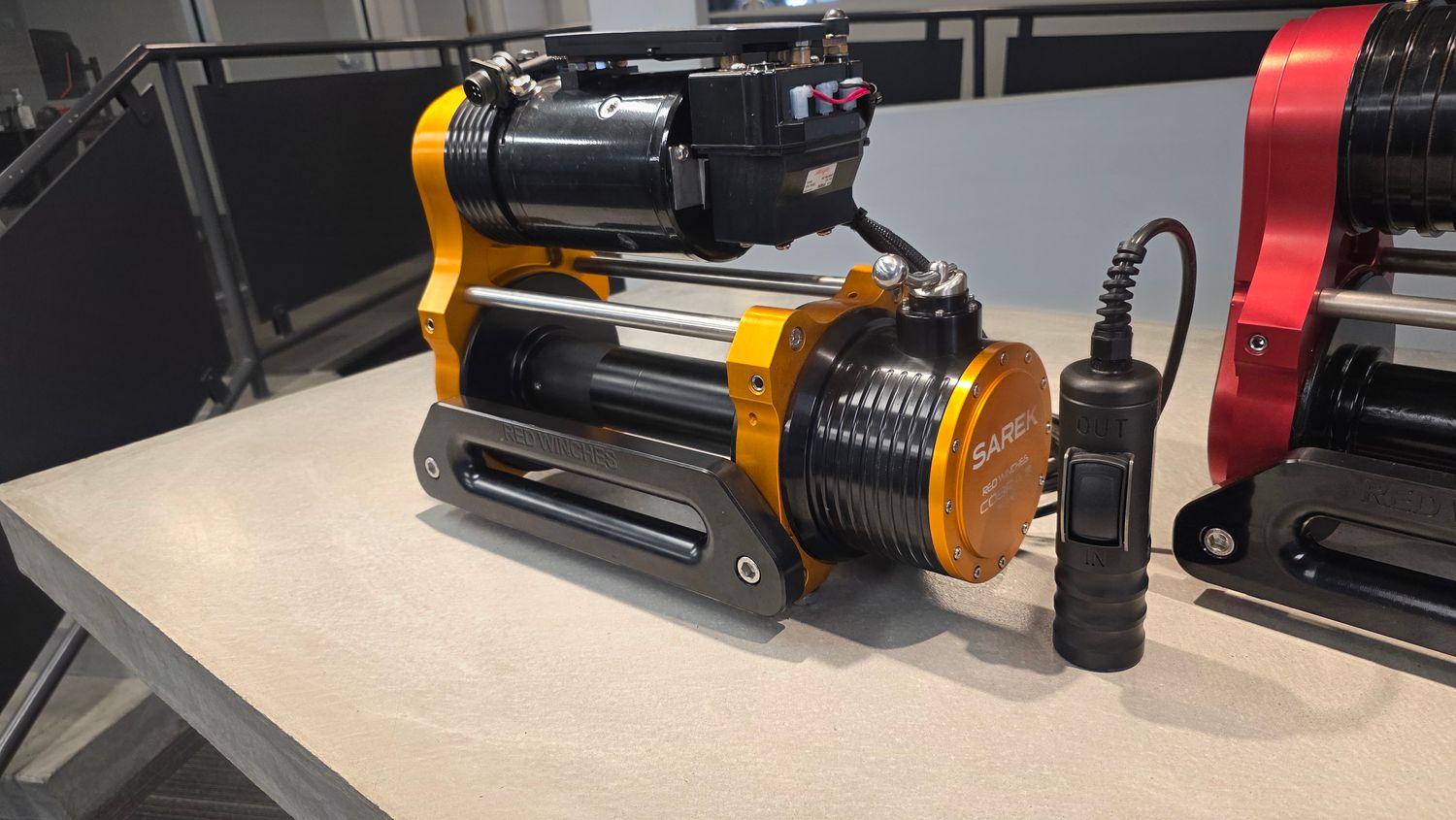

Cobra 3 in Orange
$3,299.99
Great Value!
Custom Color!
In stock: 1 available
Product Details
Great opportunity to get a brand new Orange Cobra 3 with the 3" wider drum! This allows more rope capacity and more wraps on the drum. Comes with a corded Mil-Spec hand controller. This is a 10k or 16k lb capacity winch (depending on pulley location) and a manual freespool lever.
Product Details
RED WINCH COBRA3
Introducing the COBRA3, a powerful and versatile electric winch engineered for serious off-road, expedition, competition, and military use. With either a inline twin motor arrangement or single motor, the COBRA3 maintains high line speeds even under heavy loads. Built to withstand extreme conditions, this winch is precision-engineered for reliability, durability, and ultimate performance.
Built for extreme conditions, the COBRA3 incorporates RED Winches’ famous air brake system for instant stopping power and reliability. Options for manual or air freespool. Available in multiple colors to suit your vehicle’s style, this winch is engineered for ultimate durability, whether on-road, off-road, or in military applications.
Power & Strength
- Equipped with Ox motors for exceptional pulling power
- Features a DC182 series Albright solenoid
- Pure copper bus bars for efficient power transfer
- CNC-machined Delrin cover for added protection
Voltage Options
- 12V: Motor power and control signal operate at 12V
Manufacturing & Assembly
- Designed, machined, and assembled in Chard, Somerset, UK
- Extensive testing program, including military-grade validation
The COBRA3 is the ultimate winch for serious recovery and adventure enthusiasts, providing top-tier performance and reliability for any situation.
Key Features
- Twin or Single Motor Configuration (12V or 24V options)
- Standard, Medium and XL Drum for increased rope capacity
- Choice of two Gear Ratios: Overland and Titan
- Famous RED Winch Air Brake System for instant stopping power
- Custom Orange Color
- CNC Machined from High-Grade Aluminium (No castings or injection mouldings)
- Weatherproof and Submersible Design
What’s In The Box?
- Anodized CNC-machined billet housings
- RED Winch Air Brake System
- Dual Ox Motors
- Heavy-duty DC182 Ultimate Solenoid
- Air Solenoid for Automatic Brake Operation
- Aluminium Fairlead for Synthetic Rope Protection
Note: Synthetic rope sold separately
GEARBOX & SPEEDS
This COBRA3 is available with 2 gearing options.
Overland – (10,000lbs)
or
Titan – (16,500lbs)
No load line speed
Overland – 9.8 M/Min (32.2 ft/Min) Drum RPM - 46
Titan – 4.3 M/Min (11.9 ft/Min) Drum RPM - 20
The gears are manufactured from chromium molybdenum steel and case hardened to give maximum strength (Up to 1230 N/mm2) and excellent durability. The gearbox runs in semi liquid grease not oil making it much easier to service. Please choose your gearing option from the menu.
Cobra 3 in Orange
